-SERVO-DRIVEN SPECIFICATION
TY-6050 Full Servo Automatic L Bar Sealer Machine for POF Shrink Film Packaging
Full servo-driven automatic L bar sealer designed for high-speed POF shrink film packaging with precise motion control and stable continuous operation.
TY-6050 Automatic L Bar Sealer Overview
The TY-6050 is designed for manufacturers requiring servo-controlled precision and reliable automation for medium-size product shrink wrapping. Unlike traditional pneumatic sealers, the TY-6050 utilizes a multi-axis servo-driven architecture to achieve smoother motion control, precise film positioning, and stable performance in continuous production environments.
Controlled by an Inovance PLC system, the TY-6050 coordinates product feeding, film positioning, sealing, and waste film collection through integrated servo motion control. Depending on product size, packaging requirements, and machine configuration, the TY-6050 can achieve high-speed operation from 40 packs/min and beyond, with verified applications including food trays, toy boxes, paper plates, and carton packaging.
Why Choose the TY-6050 Servo-Driven System?
The TY-6050 servo-driven system provides advantages over traditional pneumatic L-bar sealers, especially in motion control, positioning accuracy, and high-speed production stability.
Stable High-Speed Performance
The servo-driven system provides smoother acceleration and deceleration compared with traditional pneumatic drives, helping maintain stable cycle performance during high-speed operation.
Precise Film & Position Control
Driven by Inovance servo motors, the film pulling and sealing movements are precisely synchronized. Operators can adjust film positioning parameters and sealing margins through the HMI for different product sizes.
Optimized Sealing Parameters
The sealing blade stroke can be adjusted through the HMI according to product height (up to 150mm), allowing operators to optimize sealing settings for different packaging requirements.
Key Features of TY-6050 Automatic L Bar Sealer
Inovance PLC & Servo Integration
The TY-6050 uses an Inovance PLC control system with coordinated servo drives for the infeed conveyor, outfeed conveyor, film pulling mechanism, and sealing blade movement.
PTFE-Coated Sealing Blade
The alloy L-shaped sealing blade features a high-temperature PTFE coating, helping prevent film adhesion during sealing and supporting stable sealing performance.
Advanced Safety Protection
The TY-6050 is equipped with an anti-cut protection system combining a protective guard and sensors. If an obstruction is detected during sealing movement, the system triggers protection to reduce the risk of product damage and operator injury.
Automatic Waste Film Collection
A brushless motor-driven rewinding system automatically collects waste film after sealing, helping maintain consistent film tension and simplifying waste handling.
Production Performance & Applications
The TY-6050 has been verified in real packaging scenarios, including food trays and retail box products.
Food & Bakery Trays
The TY-6050 is suitable for automatic shrink wrapping of food and bakery trays using POF shrink film. The servo-driven system provides stable film positioning and consistent sealing performance for continuous packaging operations.
Retail Boxes & Carton Products
Verified performance includes 350mm long boxes running at 43 BPM and 450mm boxes running at 33 BPM, demonstrating stable operation across different product sizes.
How the TY-6050 Automatic L Bar Sealer Works
Complete Your Shrink Wrapping System with a Heat Shrink Tunnel
After sealing, products processed by the TY-6050 are transferred to a heat shrink tunnel for the final shrinking process.

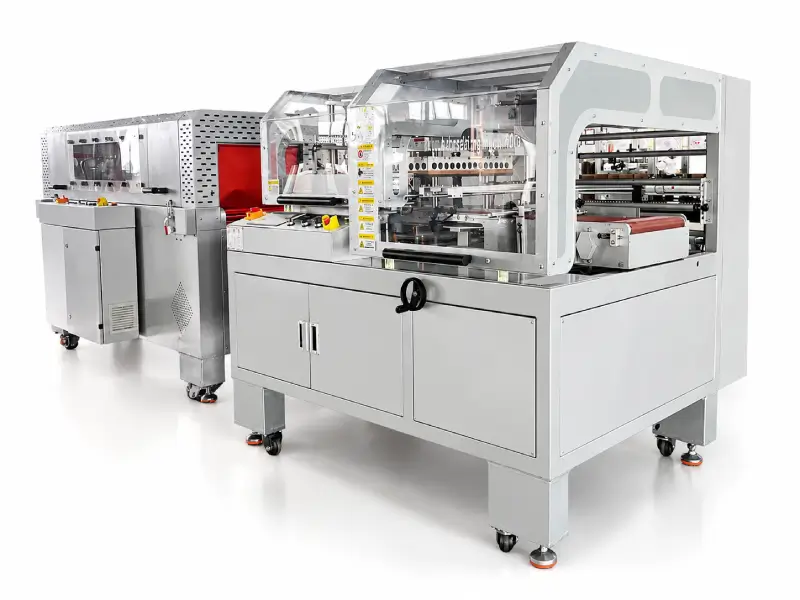

For a complete shrink wrapping line, the TY-6050 can be combined with Tengyi heat shrink tunnels to provide a continuous solution from film sealing to final package forming.
Термоусадочный тоннель TY-5030
Designed for final shrink processing after L-bar sealing.
✓ Compatible with POF shrink film packaging
✓ Continuous operation with L-bar sealers
✓ Suitable for industrial shrink wrapping lines
TY-6050 Technical Specifications
| PARAMETER | SPECIFICATION |
|---|---|
| Модель | TY-6050 |
| Входное напряжение | 220V / 50Hz / Single Phase |
| Production Capacity | 30–50 packs per minute |
| Max Package Size | L+H ≤ 500mm; W+H ≤ 450mm; H ≤ 150mm |
| Скорость конвейера | 10–50 m/min |
| Система управления | Inovance PLC & Servo |
| Температура уплотнения | 160°C – 220°C |
Who Should Choose the TY-6050 Automatic L Bar Sealer?
Recommended For:
✅ Manufacturers using POF center-fold shrink film for retail or industrial packaging.
✅ Production lines requiring stable high-speed sealing performance, with applications reaching up to approximately 40 packs/min.
✅ Products with different sizes requiring flexible parameter adjustment through the HMI.
Not Recommended For:
❌ Extra-long products exceeding standard L-bar sealing dimensions (continuous side sealers are more suitable).
❌ Heavy-duty bundling applications requiring thick PE film packaging (other wrapping systems may be more suitable).
Visual Content & Support
Sealing Blade Alignment & Servo Home Adjustment
Learn how to align the L-Bar sealing blade, adjust seal position through HMI, and reset the servo home position for consistent sealing performance.
Sealing Blade Alignment & Servo Home Adjustment Guide
Learn how to adjust the L-Bar Sealer sealing blade position, align the seal line with the tray center, and complete the Blade Servo Home reset procedure for stable sealing performance.
Film Threading & Setup Guide
Learn how to correctly load and thread center-fold shrink film on an L-Bar Sealer, including film routing, tension adjustment, manual feeding, and initial setup procedures
Waste Film Rewind System Maintenance Guide
Learn how to operate and maintain the TY-6050 L-Bar Sealer waste film rewind system.
This video covers waste roll removal, cleaning procedures, film rewinding setup, and system reset steps for smooth daily operation.
ЧАСТО ЗАДАВАЕМЫЕ ВОПРОСЫ
What are the advantages of the servo system over pneumatic models?
For production requiring higher cycle stability and precise control, the servo-driven TY-6050 provides smoother motion, more accurate film positioning, and easier parameter adjustment through the HMI compared with traditional pneumatic systems.
Can this machine be integrated into a full production line?
Yes. The TY-6050 supports integration with heat shrink tunnel systems through dedicated ready signal and safety interlock connections. These allow synchronized operation and shared emergency stop functions between the sealing machine and downstream equipment.
What film does the TY-6050 use?
The TY-6050 is optimized for POF (Polyolefin) center-folded shrink film, which is commonly used for clear retail and industrial shrink packaging applications.
What information is needed for a technical evaluation or quote?
To evaluate whether the TY-6050 matches your application, please provide your product dimensions (L × W × H), required production speed, film type/thickness, and product photos if available.
What is the maximum product height for the TY-6050?
The TY-6050 supports products with a maximum height of 150mm according to the confirmed specification.
