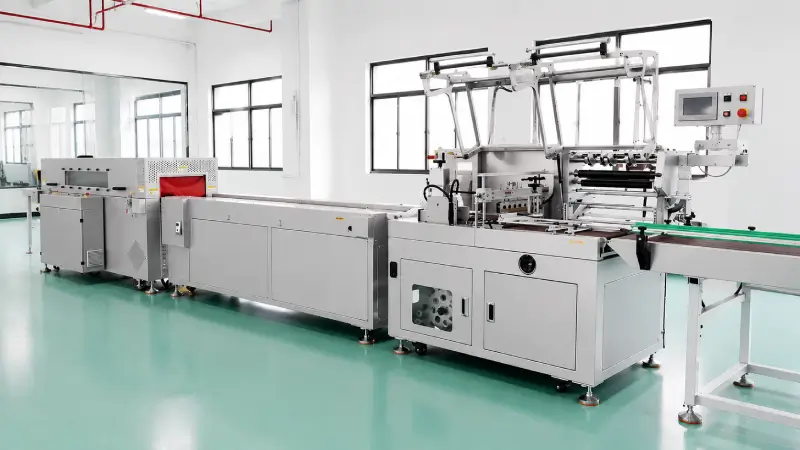

TY-350T Automatic Side Sealer for Long Products
A full-servo continuous sealing machine designed for aluminum profiles, architectural trims, flooring, and other extended products requiring flexible shrink packaging
Overview
The TY-350T is a fully automatic side sealing machine engineered for continuous shrink packaging of long products.
Unlike conventional L-bar sealers, its continuous side-sealing design eliminates the sealing length limitations associated with traditional sealing bars, making it ideal for aluminum profiles, architectural trims, flooring, and other extended products.
Equipped with a full-servo drive system, precision film handling, and a customized flat-film folding mechanism, the TY-350T delivers stable operation, accurate sealing, and reduced film consumption for high-volume industrial production.
Key Features & Benefits
Designed for Higher Productivity, Lower Operating Costs, and Reliable Industrial Performance
Continuous side sealing combined with synchronized servo motion eliminates the sealing bar length limitation of conventional L-bar sealers.
Packages long products continuously at speeds up to 25 m/min, making it ideal for aluminum profiles, flooring, moldings, and other extended products.
Processes standard flat film instead of center-folded film.
Reduces film costs by approximately 20% while providing greater flexibility for long-product packaging.
Omron PID controller maintains stable sealing temperatures while the PTFE-coated alloy blade minimizes film adhesion.
Produces clean, consistent seals and reduces cleaning frequency during continuous production.
The safety system detects misplaced products or obstructions above 5 mm and immediately stops the sealing blade.
Helps protect products, sealing components, and operators while reducing unexpected downtime.
Allows operators to quickly align the sealing position with different product heights.
Improves package appearance, sealing consistency, and changeover efficiency for different product sizes.
Monitors film feeding, product positioning, sealing status, and other key operating conditions.
Provides fast fault identification, reduces troubleshooting time, and minimizes production interruptions.
Technical Specifications
| Parameter | TY-350T Edge Sealing Machine |
|---|---|
| Power Supply | 230V, 50Hz (Single-phase) |
| Total Power | 3kW |
| Belt Speed | 0 – 25 meters/minute (Adjustable) |
| Sealing Knife Size | L320 mm |
| Max Cutting Size | Length Unlimited × Width + Height ≤ 200mm |
| Product Height Limit | Height ≤ 80mm |
| Air Pressure Req. | ≥ 5kg/cm² |
| Machine Dimensions | L1750 × W1100 × H1600 mm |
| Machine Weight | Approx. 380kg |
| Core Components | Inovance PLC / Schneider Relays / Omron Sensors |
Recommended Heat Shrink Tunnels
Complete Your Packaging Line
The TY-350T automatic side sealer can be integrated with different heat shrink tunnels depending on your film type, product dimensions, and production requirements.
TY-5030 High-Performance Shrink Tunnel
Best for:- POF film
- Cosmetics
- Retail packaging
- Small cartons
✓ High-speed hot air circulation
✓ Excellent shrink appearance
✓ Up to 2,400 packs/hour
TY-4525 Compact Heat Shrink Tunnel
Best for:
- POF & PVC film
- Small cartons
- Cosmetics
- Food packaging
✓ High-efficiency hot air circulation
✓ Consistent shrink appearance
✓ Up to 3,000 packs/hour
Applications & Materials
Supported Materials
Optimized for POF (Polyolefin) heat shrink film. The system is compatible with both single-layer flat film and center-folded film via the customized folding assembly.
Target Industries
Aluminum extrusions, architectural profiles, and floor trims. View the case details
Decorative moldings, wood flooring, and specialized baseboards.
Products requiring moisture-proof, dust-proof, and retail-ready “premium” packaging.
