TY-4525 Industrial Heat Shrink Tunnel
The TY-4525 features a forced hot air circulation system and stainless steel heating elements that provide uniform heat distribution and consistent shrink quality for continuous industrial packaging. It is specifically engineered for high-performance wrapping using POF, PVC films
Electric Forced Hot Air
Precise Digital PID Controller
12 Stainless Steel Tubes (Rapid Recovery)
Electronically Adjustable Speed
The TY-4525 is a compact industrial heat shrink tunnel designed for small and medium-sized products. It uses a constant-temperature hot air circulation system to provide uniform heating throughout the tunnel, delivering consistent shrink results for a wide range of product shapes and sizes.
Why Choose the TY-4525?
The TY-4525 is designed for manufacturers requiring a compact heat shrink tunnel for continuous production. Compared with larger models, it provides a space-saving design while maintaining uniform heat distribution and consistent shrink quality.
Key Technical Features
01
Advanced internal air ducts promote uniform hot air circulation throughout the heating chamber, ensuring consistent shrink results across a wide range of product shapes and sizes.
02
Twelve stainless steel heating tubes provide rapid heat-up and fast temperature recovery during continuous production cycles.
03
Equipped with a digital PID temperature controller to maintain accurate and stable temperature settings from 0–200°C, ensuring consistent shrink performance throughout production.
04
The conveyor speed is continuously adjustable, allowing precise synchronization with different film types, product dimensions, and production requirements.
05
Heat-resistant silicone-coated rollers reduce film adhesion and provide stable, consistent product transport through the shrink tunnel.
06
An integrated cooling sequence continues fan operation after shutdown to dissipate residual heat and protect critical components from excessive thermal loading.
Technical Specifications
| ITEM | SPECIFICATION |
|---|---|
| Model | TY-4525 |
| Tunnel Type | Constant Temperature Hot Air |
| Tunnel Opening (W×H) | 450 × 250 mm |
| Temperature Range | 0 – 200°C (Adjustable) |
| Conveyor Type | Silicone Sleeve Rollers |
| Conveyor Speed | Electronically Adjustable |
| Heating Elements | 12 Stainless Steel Tubes（1KW each） |
| Power Supply | 3Φ 380VAC 50/60Hz |
| Max Capacity | 2000 – 3000 units/hour |
Key Technical Features
The TY-4525 is configured for high-consistency packaging in the following sectors:
01
02
03
04
05
TY-4525 Shrink Wrapping Line Application

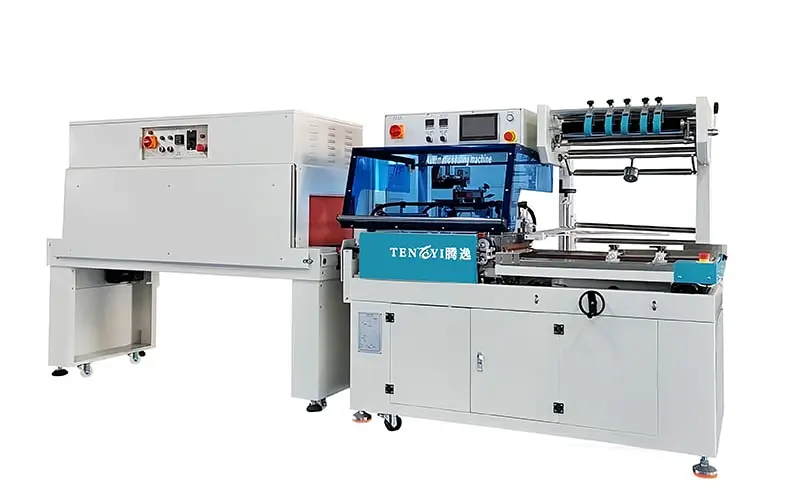

This video demonstrates the TY-4525 heat shrink tunnel integrated with an L-bar sealer, showing the complete shrink wrapping workflow from film sealing to the final shrink process.
Machine Details
Integrated Control Panel
The integrated control panel provides centralized access to the power switch, start/stop controls, digital temperature controller, conveyor speed adjustment, and emergency stop, enabling simple operation and precise process control.
High-Temperature Silicone Roller Conveyor
Galvanized steel rollers with high-temperature silicone sleeves ensure smooth product transport, reduce film sticking, and withstand continuous high-temperature operation.
