TY-5545 L Bar Sealing Wrapper

The TY-5545 L-Type Sealing Wrap Machine delivers precise, efficient sealing (5-30 pieces/min) for different packaging, with intelligent control and energy-saving features. This machine caters to 80% of customers who require a reasonably good sealing and cutting speed while staying within a limited budget.
Teflon-coated sealing blade

Intelligent Detection and Automation

Features Omron horizontal and vertical dual photoelectric sensors, auto-feeding, length adjustment, and seamless integration with unmanned production lines.

Precise Temperature Control and Safety Design

The intuitive display provides instant status to give you complete control, so operation is simple and quick

Omron digital temperature controller (with PID function) ensures precise sealing temperature, featuring auto-protection and an auto-alarm system for enhanced safety.

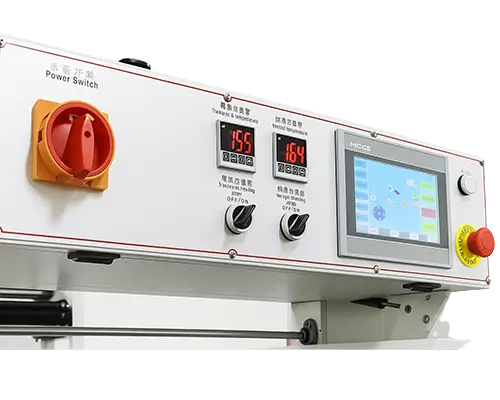

control panel of L bar sleaer TY5545

The TY-5545 L-bar sealer efficiently wraps food, pharmaceutical, cosmetic, and daily goods, handling items as small as 8cm×5cm×3cm.

It’s an ideal mate for automated production lines, offering high efficiency and stability with 20-hour continuous operation and a ≥98% pass rate.

Benefiting from 10+years of iterative upgrades, this machine is highly stable and perfect for users prioritizing affordability and requiring rapid shrink wrap packaging.

Parameter Specification
Machine Size L1720 × W1100 × H1560 mm
Belt Height 800 mm + 700 mm
Sealing Blade Size L550 × W450 mm
Conveyor Speed Feed Belt: 22.5 m/min
Discharge Belt: 22.5 m/min
Film Unwind Speed 22.5 m/min
Film Traction Speed 22.5 m/min
Sealing Temperature Varies by material
Power Supply Single-phase AC 200/220V, 4P, 50/60 Hz
Motors and Heaters – Feed Belt Motor: 90W
– Discharge Belt Motor: 90W
– Feeding Motor: 25W
– Clamping Motor: 60W
– Rewinding Motor: 40W
– Heater: Horizontal 1000W, Vertical 1200W
Air Pressure 6 kg/cm², 37 NL/min
Sealing Time Typically 1.5 seconds
Packaging Efficiency 5-30 pieces/min (depending on product size)
Film Type POF Folded Film
Product Size Requirements – Max Size: L+H ≤ 450 mm, W+H ≤ 350 mm, H ≤ 110 mm
– Min Size: L ≥ 80 mm, W ≥ 50 mm, H ≥ 30 mm
